Metal Pall Rings: High-Performance Tower Packing for Maximum Mass Transfer Efficiency

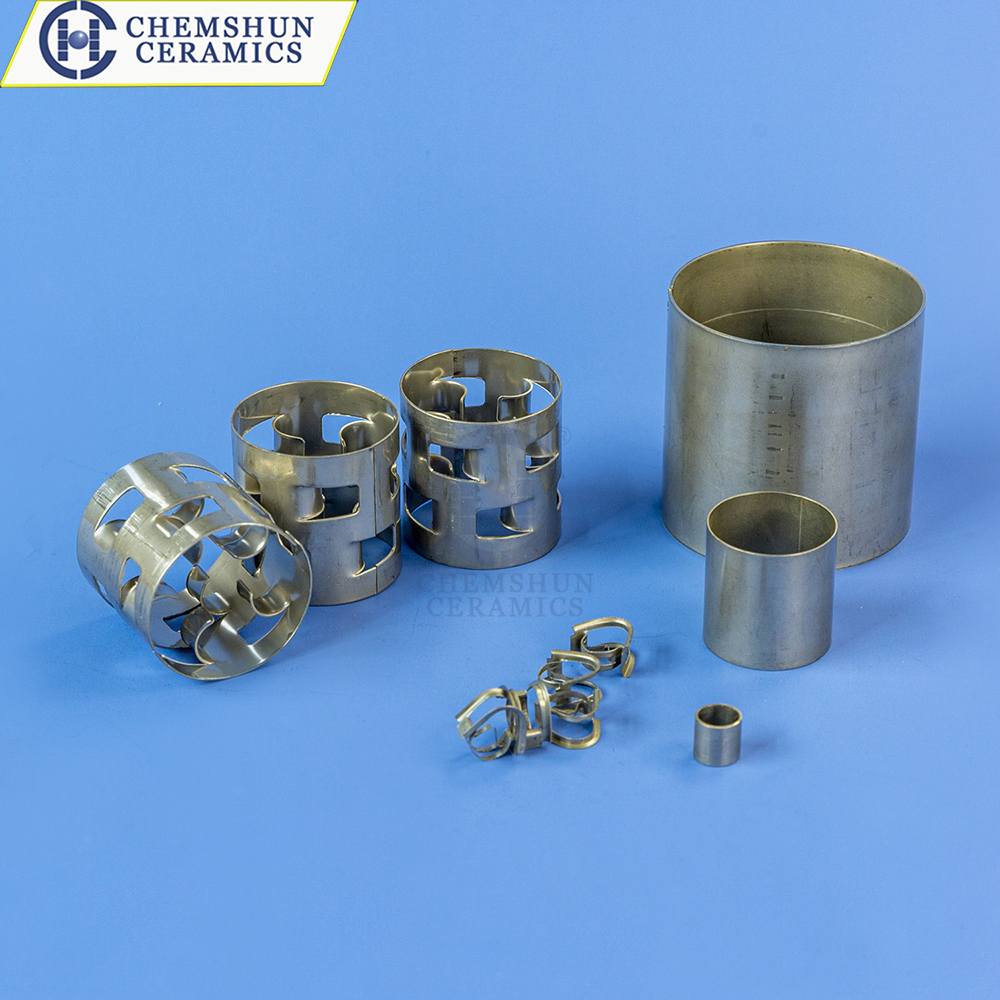

Since their invention as an enhancement to the Raschig ring, Pall rings have become one of the most widely adopted random tower packings in the chemical process industry. Originally developed by BASF in the 1940s, the metal Pall ring features a cylindrical wall with two rows of inward-bent tongues that create a highly open structure. This geometry permits gas and liquid to pass through the ring more freely, resulting in a significantly lower pressure drop and a higher flooding point compared to conventional Raschig rings. In fact, when replacing Raschig rings of the same size, metal Pall rings can increase column capacity by over 50% while cutting pressure drop by approximately half, making them a reliable choice for both new installations and column revamps.

Manufactured from high-grade alloys such as 304/304L, 316/316L stainless steel, carbon steel, and even Hastelloy, metal Pall rings deliver exceptional mechanical strength and corrosion resistance across a wide temperature range—often up to 500°C and beyond for stainless steel grades. Precise geometric standards ensure consistent performance: a typical 25 mm (1 inch) stainless steel 304 Pall ring offers a specific surface area of approximately 219 m²/m³, a void fraction of 93.4%, and a bulk density around 500 kg/m³. Larger sizes, such as 38 mm and 50 mm, maintain similarly high void fractions above 95%, making them ideal for high-liquid-load services and deep vacuum distillation where minimizing pressure drop is critical.

The internal tongues of a metal Pall ring redirect the liquid and gas phases toward the ring’s interior, promoting continuous surface renewal and uniform liquid distribution across the packed bed. This design strongly suppresses wall-channeling and dry spots, even at low liquid irrigation rates, while its high void volume resists fouling and allows for sustained operation over long run cycles. Under identical operating conditions, metal Pall rings often achieve a lower height equivalent to a theoretical plate (HETP) than many other random packings, which translates directly into reduced column height, lower capital expenditure, and energy savings in distillation, absorption, stripping, and extraction columns.

As an experienced manufacturer and global exporter of tower packings, we supply a complete range of metal Pall rings in standard sizes from 16 mm to 76 mm, with custom dimensions and materials available upon request. Every batch is manufactured under strict quality controls and tested for geometric accuracy, mechanical strength, and chemical composition, ensuring that the packing you receive performs exactly as designed. Whether you are designing a grassroots petrochemical complex, upgrading a refinery distillation train, or optimizing an environmental scrubbing system, our metal Pall rings deliver dependable, long-service-life mass transfer performance to projects on six continents.
