Ceramic Raschig Ring Tower Packing: Properties, Specifications And Industrial Applications

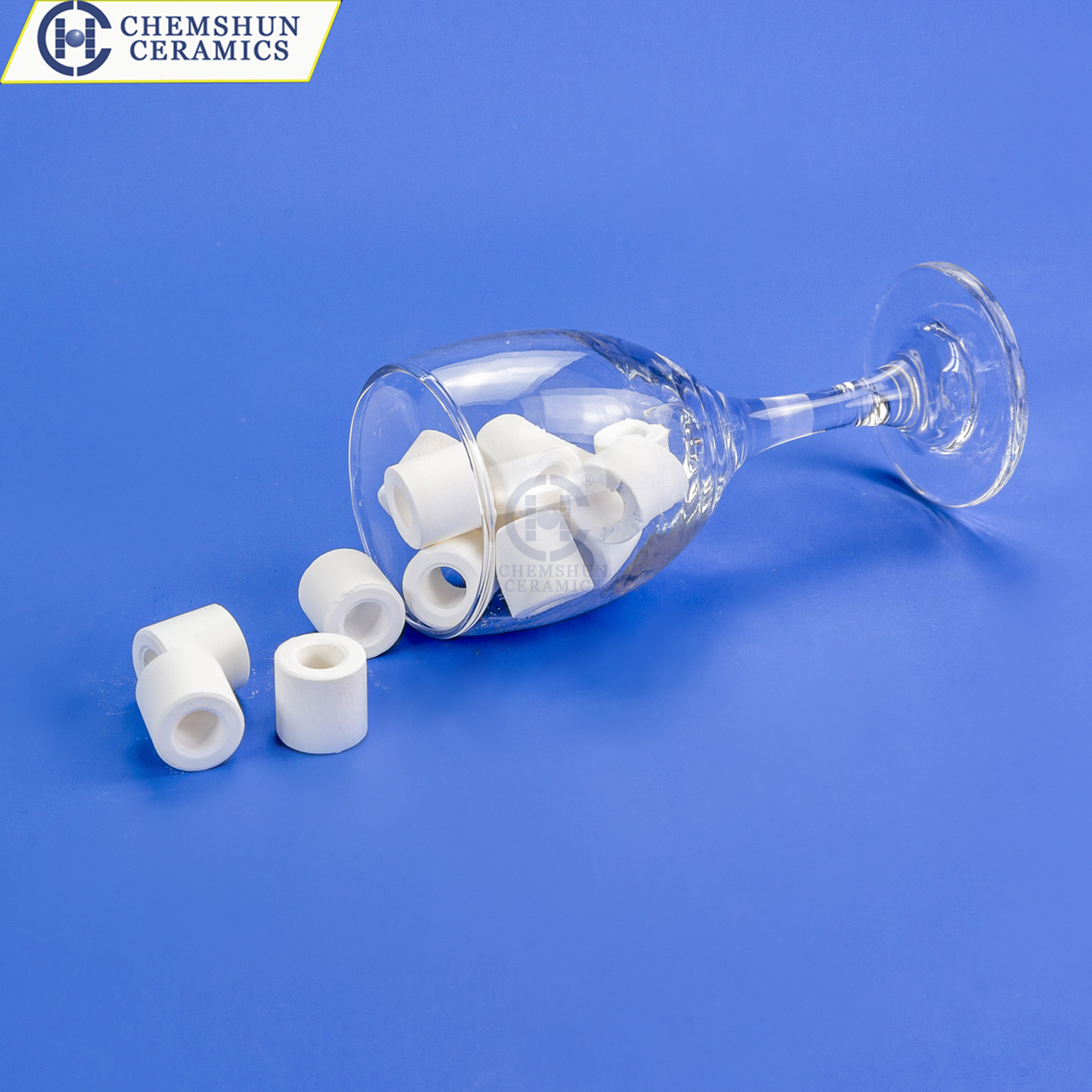

Ceramic Raschig ring is the earliest industrially developed random tower packing, first introduced by F. Raschig in 1914. The ring features a hollow cylindrical shape with equal height and diameter, manufactured from acid-resistant ceramic materials through high-temperature firing. It is widely used in packed columns for mass transfer operations including distillation, absorption, and stripping.

Ceramic Raschig rings are produced from high-alumina, low-iron clay combined with feldspar, quartz, and forming additives through a series of processes including ball milling, iron removal, vacuum pugging, molding, drying, and high-temperature firing.

Key chemical indicators: acid resistance ≥ 99.6%, alkali resistance ≥ 85%, maximum operating temperature 1000°C, Mohs hardness > 6.5, water absorption < 0.5%. The material resists corrosion from various inorganic acids, organic acids, and organic solvents, with the exception of hydrofluoric acid.

Ceramic Raschig rings are employed across multiple industries:

-Chemical processing: drying columns, absorption columns, scrubbing towers, and regenerating towers in chemical, metallurgical, coal gas, and oxygen production industries.

-Environmental engineering: desulfurization, denitrification, and volatile organic compound treatment systems, as well as wastewater treatment towers.

-Catalyst support: ceramic Raschig rings serve as covering and support materials for catalysts in reactors, increasing gas-liquid distribution points and protecting low-strength active catalysts.

Ceramic packing offers advantages over metal and plastic alternatives in specific operating conditions. Ceramic material provides superior wettability, resistance to corrosion at elevated temperatures, and minimal susceptibility to aging and deformation. However, ceramic packing has lower mechanical strength compared to metal packing. Metal and plastic packings offer the advantage of lighter weight, but ceramic elements remain the preferred choice when corrosive chemicals are involved and good wettability is required.

Ceramic Raschig rings remain a reliable packing solution for corrosive and high-temperature mass transfer operations. Their combination of chemical stability, thermal resistance, and cost-effectiveness ensures continued relevance in chemical processing, environmental protection, and metallurgical industries.
