Ceramic Tower Packing: A Reliable Choice for Industrial Mass Transfer

Ceramic tower packing refers to fired ceramic elements produced from naturally occurring clays or compounded bodies. These elements are loaded into process towers to provide contact surfaces for gas–liquid interaction, thereby enhancing mass and heat transfer. ASTM C515 defines them as fired ceramic shapes designed primarily for use in process equipment for the chemical and allied industries.

The working principle is straightforward: liquid flows downward as a thin film over the packing surface, while gas rises through the interstitial voids, enabling mass exchange on the wetted surface. The geometry, specific surface area, and void fraction of the packing directly determine the separation efficiency and hydraulic performance of the column.

Core Performance Characteristics：

1. Corrosion Resistance

2. High-Temperature Resistance

3. Mechanical Strength and Thermal Stability

Ceramic tower packing is classified into two broad categories based on loading method: random packing and structured packing.

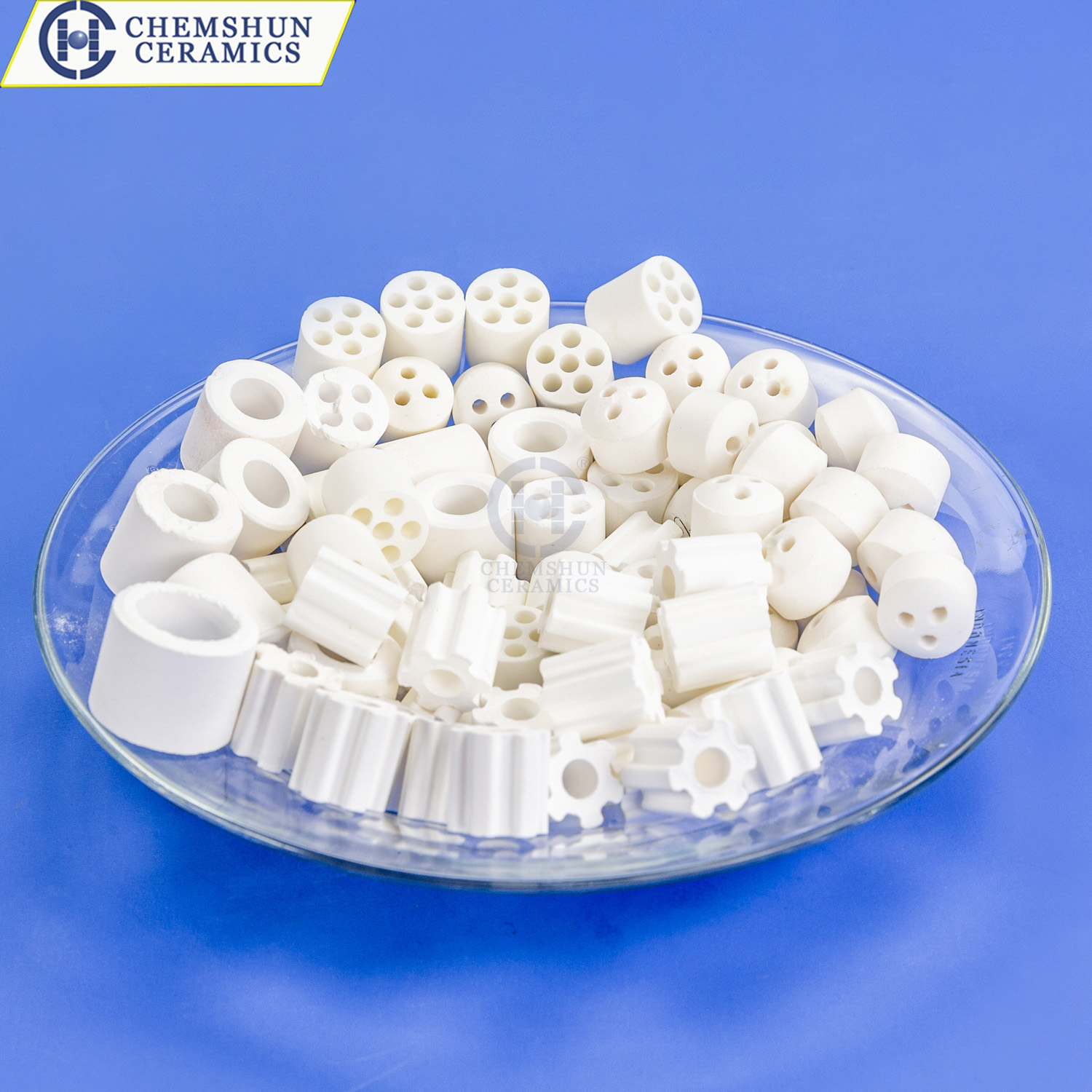

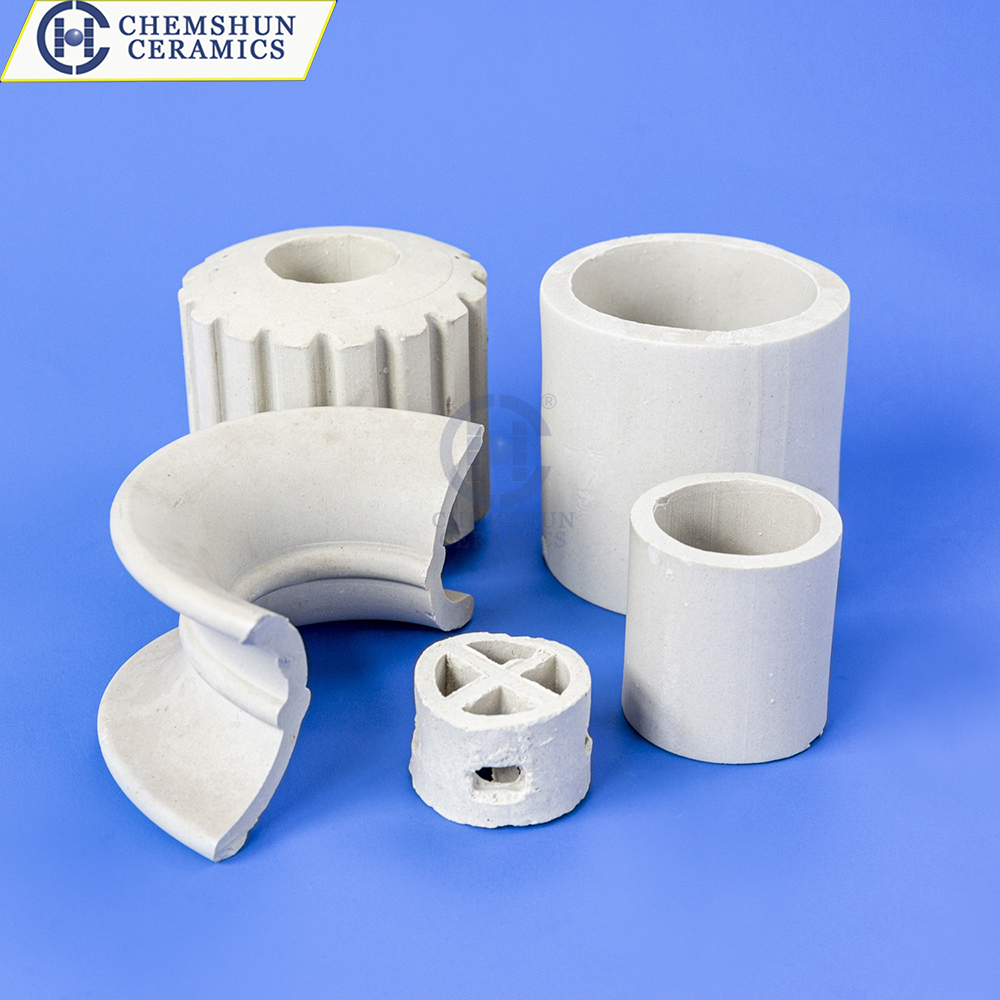

Random packing is loaded into towers individually in random orientation. Common shapes include the Raschig ring, Berl saddle, Intalox saddle, Pall ring, cascade ring, and various saddle geometries. Random packing offers ease of installation and relatively low cost, making it suitable for a wide range of mass transfer operations. Its drawbacks include the potential for uneven gas distribution and a tendency toward localized deposition and channeling.

Structured packing consists of corrugated sheets or similar elements arranged in a defined geometric pattern, creating regular channels for gas and liquid flow. Ceramic corrugated structured packing offers low pressure drop, high throughput, and favorable scale-up characteristics, with separation efficiency generally exceeding that of random packing. In acid service, structured packing can achieve notably lower pressure drop compared to conventional random packing, thereby reducing energy consumption.

Ceramic tower packing is predominantly applied in mass transfer operations that demand both corrosion resistance and thermal stability. Key application scenarios include:

Chemical and Petrochemical Processing: Applied in absorption towers, distillation columns, and rectification towers for sulfuric acid and nitric acid, as well as in the separation of halogenated organic compounds. The chemical inertness of ceramic packing in acidic media makes it the preferred material for these services.

Gas Purification and Environmental Protection: Used as scrubbing tower packing, desulfurization tower media, and thermal storage media in regenerative thermal oxidizers (RTOs). The high-temperature stability of ceramic materials enables long-term service under the cyclic high-temperature conditions of RTO operation.

Metallurgy and Coal Gas Industry: Applied in scrubbing towers, naphthalene removal towers, and gas cooling towers for coke oven gas purification. Ceramic packing maintains stable mass transfer performance in gas streams containing complex components such as tar and naphthalene.

Pharmaceutical and Fine Chemical Processing: Employed in solvent recovery and precision distillation, where the chemical inertness of ceramic material avoids adverse effects on product purity.

Conclusion

Ceramic tower packing maintains a firm position in mass transfer operations across chemical, petrochemical, metallurgical, and environmental protection industries, owing to its combined corrosion resistance, thermal stability, and chemical inertness. Its limitations—brittleness and relatively high weight—should be fully recognized during selection; however, in high-temperature and highly corrosive services, ceramic materials frequently remain the technically and economically optimal solution. Appropriate type selection and proper installation are prerequisites for realizing the performance advantages of ceramic tower packing.
