Plastic Tower Packing Pall Ring: Structure, Performance, and Industrial Applications

Plastic Pall Rings are a widely adopted random tower packing in gas–liquid mass transfer operations. Derived from the Raschig ring, the Pall Ring introduces a slotted wall geometry that improves fluid distribution and reduces pressure drop while maintaining a high specific surface area. This article outlines the structural features, performance characteristics, material options, and typical applications of plastic Pall Rings in chemical and environmental processes.

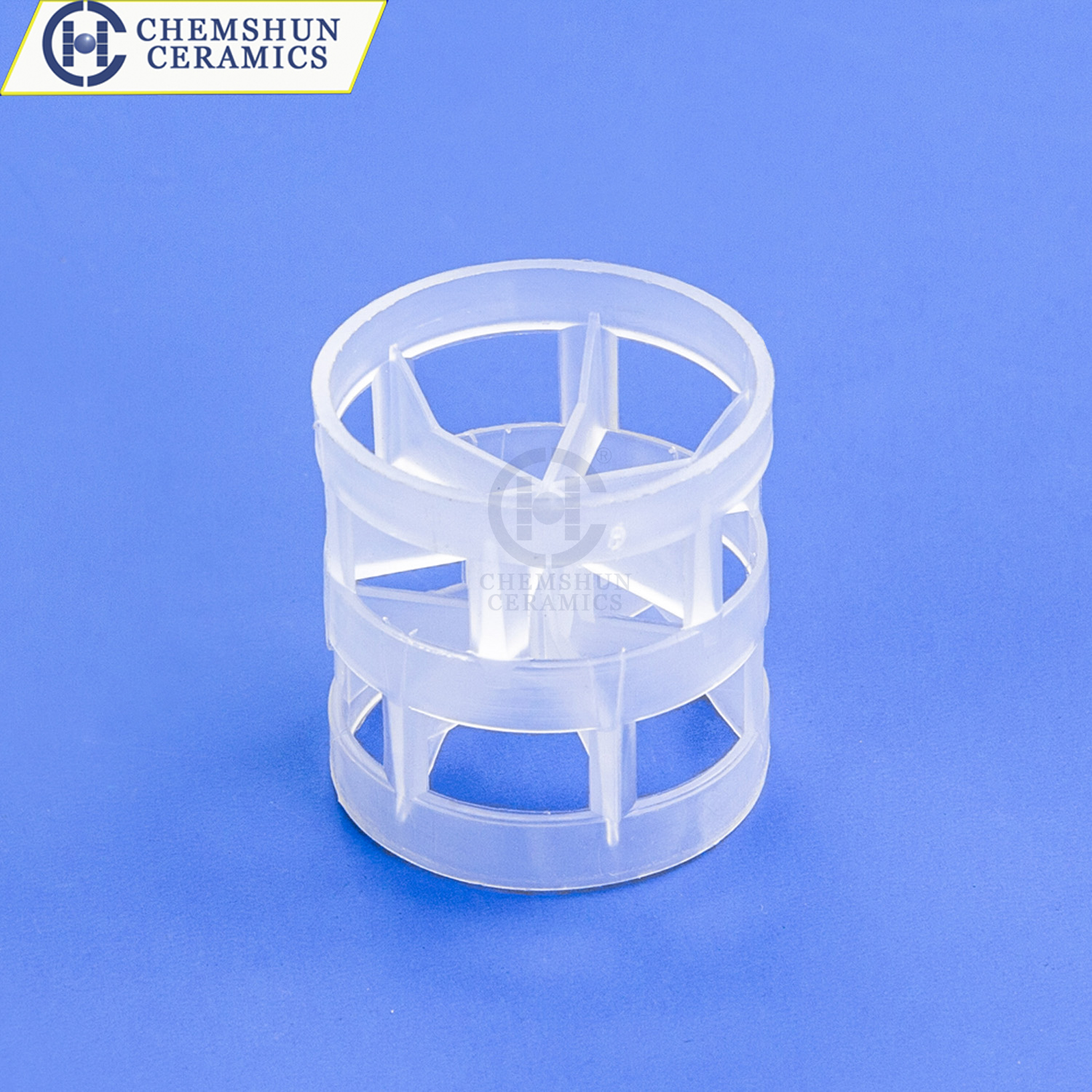

The Pall Ring is a cylindrical packing with a height approximately equal to its diameter. Its defining feature is the presence of two rows of punched windows on the ring wall, with inward-bent tongues projecting toward the ring center. The windows on adjacent rows are offset, and the open area typically accounts for about 30% of the total wall area. This design allows gas and liquid to pass freely through the ring wall, promoting radial mixing and improving contact between phases. The internal tongue surfaces also enhance liquid spreading and wetting of the inner ring surface. Compared with the conventional Raschig ring, the Pall Ring addresses the limitations of poor gas–liquid distribution and underutilized internal surface area.

The primary performance advantages of plastic Pall Rings are high throughput, low pressure drop, and stable mass transfer efficiency. Under comparable pressure drop conditions, the processing capacity of a Pall Ring bed can exceed that of a Raschig ring bed by more than 50%; under equivalent throughput, the pressure drop may be approximately halved. Mass transfer efficiency is also improved, with reported gains of roughly 20% over Raschig rings under certain operating conditions. Typical void fractions for plastic Pall Rings exceed 90%, depending on nominal size, which supports low resistance to gas flow and reduces the tendency for fouling or entrainment. The packing also exhibits favorable operating flexibility, maintaining separation performance across a relatively broad range of gas and liquid loads.

Plastic Pall Rings are employed in absorption, stripping, scrubbing, distillation, and extraction columns across the chemical, petrochemical, chlor-alkali, and environmental protection industries. Specific duties include gas cooling, acid gas removal, desulfurization, ammonia decarbonization, and volatile organic compound recovery. Because plastic packings are lightweight and resistant to many corrosive media, they are often specified for packed towers where metallic or ceramic packings would face corrosion or weight constraints. Nominal sizes from 16 mm to 76 mm allow engineers to balance capacity, efficiency, and pressure drop according to column diameter and process requirements.
