Metal Tower Packing: Material Advantages, Structural Forms and Selection Principles

Metal packings derive their engineering value from a set of basic material attributes: low weight per unit volume, high surface area per unit volume, large open-area fraction, low liquid holdup, and resistance to corrosion under appropriate alloy selection. Thin-walled metallic constructions achieve high capacity and low gas-side resistance, making them suitable for services involving elevated temperature, elevated pressure, or mechanical impact.

A critical distinction lies in surface behavior. Metallic surfaces, particularly in woven or wire-mesh configurations, promote liquid spreading via capillary action, producing more complete film formation and reducing maldistribution tendencies such as channeling. This wettability advantage directly supports mass-transfer efficiency.

1.Structural Classification

Random (Dumped) Packing

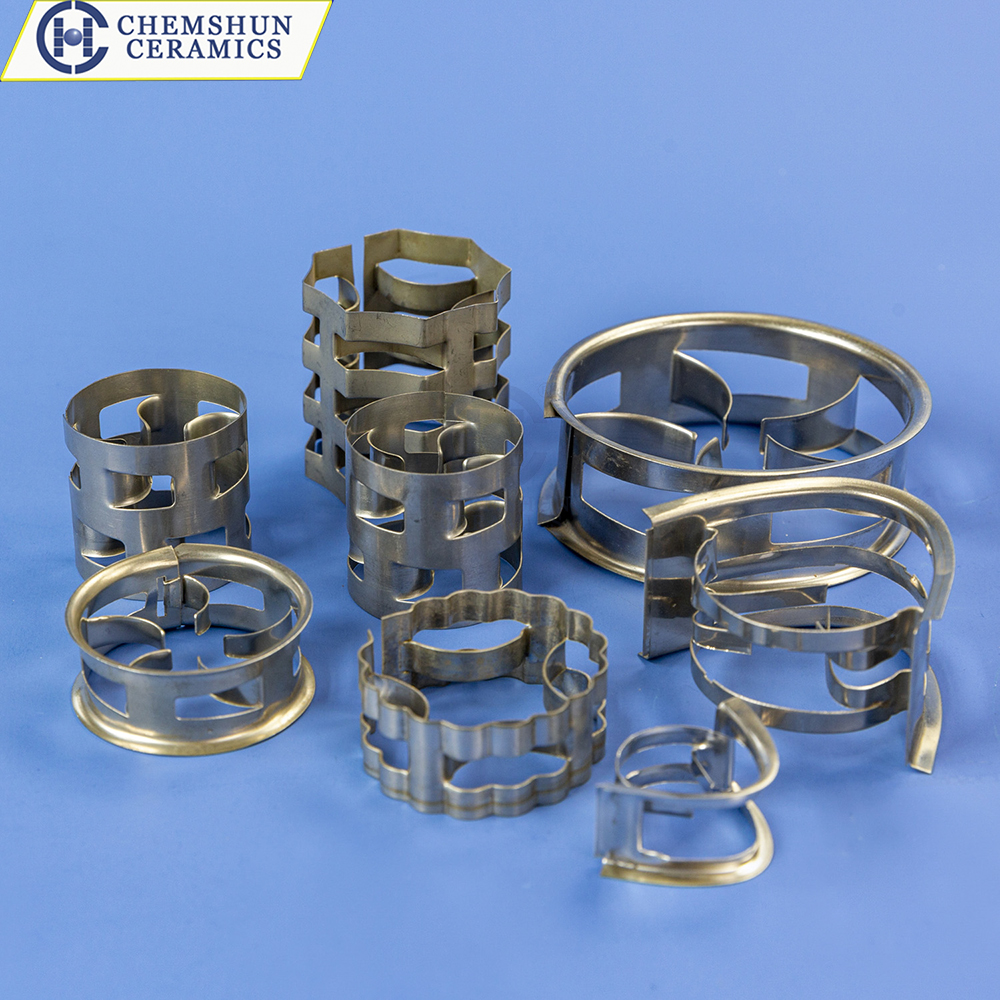

Random packings are charged into the column in bulk and settle into a randomly oriented bed. Modern forms are engineered to maximize surface-to-volume ratio while minimizing pressure drop. Representative metal random packings include Pall Rings and IMTP (Intalox Metal Tower Packing). The Pall Ring, developed from the Raschig Ring by introducing wall windows with inward-projecting tongues, improves gas–liquid distribution and internal surface utilization. IMTP elements combine the surface-area advantage of saddle geometry with the interior projections characteristic of ring packings, yielding lower pressure drop and higher capacity relative to earlier ring designs.

Structured Packing

Structured packings are installed in ordered arrangements, commonly as stacks of corrugated metal sheets with opposing corrugation angles designed to direct descending liquid and ascending vapor into repeated contact. This ordered geometry produces a highly open, consistent flow path, resulting in lower pressure drop per theoretical stage and more uniform performance across the column cross-section. Structured packings generally exhibit higher separation efficiency and capacity than random packings of comparable size, at the expense of higher installation cost and greater sensitivity to fouling and initial liquid distribution quality.

2.Performance Determinants

Packing performance is primarily governed by two linked factors: the degree of surface wetting and the uniformity of gas–liquid distribution through the bed. Specific surface area provides the interfacial area available for contact, while void fraction governs capacity and pressure drop. These geometric parameters must be evaluated together with the service environment.

Corrosion and fouling impose practical limits. Metal packings are unsuitable for highly corrosive pollutants such as acid gas unless an appropriate alloy is selected, and packing life in adverse environments may be shortened significantly by corrosion, fouling, or breakage. In services where suspended solids are present, packing geometries that avoid trapping tendencies are preferred.

3.Application Context

Metal tower packings are deployed across distillation, absorption, stripping, and gas-processing duties. Structured metal packings are frequently specified for vacuum and atmospheric distillation where low pressure drop is critical, as well as for lightly fouling absorption services. Random metal packings, including Pall Rings and cascade rings, find use in refinery operations, synthetic ammonia decarbonization and desulfurization systems, and separations involving thermally sensitive or polymerizable materials. The selection between structured and random configurations should reflect the relative priorities of efficiency, capacity, pressure drop, fouling resistance, and capital cost.

Metal tower packing offers a well-defined combination of high open area, favorable wetting behavior, and mechanical robustness. The choice between random and structured forms, and among specific geometries and alloys, should be grounded in the governing mass-transfer requirements and the chemical and hydraulic realities of the service. A disciplined selection process—balancing efficiency, capacity, pressure drop, and durability—remains the most reliable route to sustained column performance.
