Low-Alumina Inert Alumina Ceramic Balls: A Key Catalyst Support Material for Industrial Applications

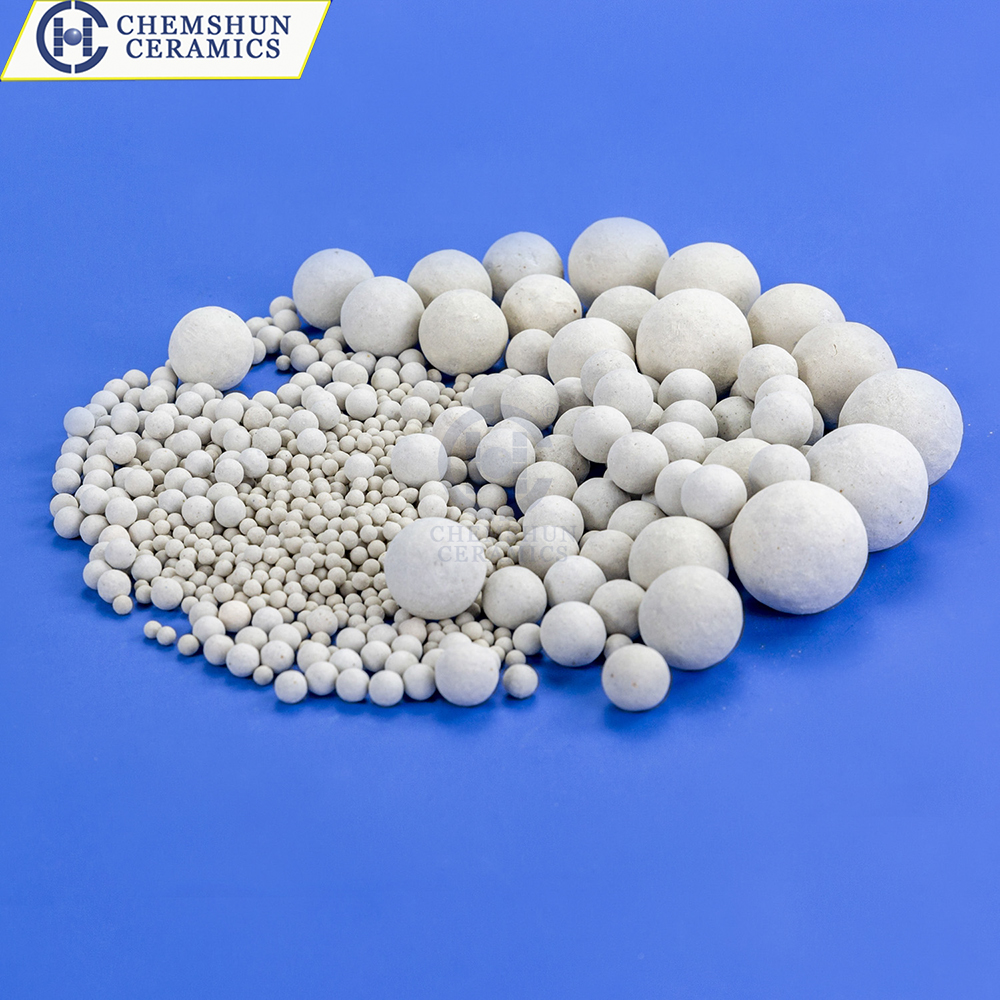

Low-Alumina Inert Alumina Ceramic Balls are spherical fillers produced from high-quality chemical-grade china clay through shaping and high-temperature sintering. Their Al₂O₃ content typically falls within the 17%–45% range, with Al₂O₃+SiO₂ ≥90% and Fe₂O₃ ≤1%. Key technical parameters include: water absorption ≤3%, bulk density 1.40–1.50 g/cm³, operating temperature ≥1200°C, Mohs hardness level 7, acid resistance ≥98%, and alkali resistance ≥82%. Crushing strength varies with ball diameter, e.g., ≥420 N for Ф6 mm and ≥2800 N for Ф25 mm particles. The product conforms to China's chemical industry standard HG/T 3683.1—2000, Industrial Ceramic Balls – Inert Ceramic Balls.

In industrial reactors, low-alumina inert alumina ceramic balls primarily serve as catalyst bed support media, covering materials, and tower packings. Their functions include: increasing the number of gas or liquid distribution points to achieve uniform flow; buffering the impact of incoming fluids on the catalyst bed; and supporting and protecting active catalysts of lower mechanical strength, thereby extending their service life. Under identical operating conditions within the same reactor, low-alumina balls can improve vapor-liquid distribution uniformity, significantly reduce system pressure drop, and effectively prevent catalyst agglomeration and coking compared with traditional support materials.

Low-alumina inert alumina ceramic balls exhibit high resistance to temperature and pressure, low water absorption, and excellent chemical stability. Their principal crystalline phases are mullite and corundum; the microstructure contains a dense network of needle-like mullite crystals with some residual quartz, yielding high density, hardness, and resistance to pulverization at elevated temperatures. The product withstands corrosion from acids, alkalis, and various organic solvents, as well as rapid temperature fluctuations during operation. With the exception of hydrofluoric acid, low-alumina balls resist attack from all inorganic acids, organic acids, and both acidic and neutral gases. Owing to their lower alumina content, manufacturing costs and market pricing are relatively economical, making them suitable for projects with budgetary constraints.

Low-alumina inert alumina ceramic balls are widely used in the petroleum, chemical, fertilizer, natural gas, and environmental protection industries. Typical applications include refinery fluid catalytic cracking units, ammonia synthesis shift converters, coal-to-methanol synthesis towers, natural gas drying adsorbers, sulfuric acid plants, and ethylene aromatics extraction units. In practical loading configurations, multiple layers of different-diameter balls are often employed: larger-diameter balls at the top and bottom for support and coverage, with smaller-diameter balls in the middle layer to enhance fluid distribution. With stable chemical properties and favorable cost performance, low-alumina inert alumina ceramic balls have become an indispensable filler material in industrial catalytic reactors.
