Honeycomb Ceramics: Precision-Engineered Structured Packing for Modern Industry

Honeycomb ceramics are a class of highly ordered, porous industrial materials featuring a distinctive straight-channel structure. Manufactured predominantly from high-purity cordierite (2MgO·2Al₂O₃·5SiO₂), mullite, dense alumina, or advanced technical ceramics, these monolithic substrates are extruded with remarkable geometric precision. The defining characteristic of honeycomb ceramics is their open frontal area, which typically ranges from 55% to over 75%, depending on cell density and wall thickness. This architecture delivers an exceptional combination of low thermal expansion (cordierite grades exhibiting a coefficient of thermal expansion as low as ≤2.0×10⁻⁶/°C between 20°C and 800°C), high specific surface area, and superior thermal shock resistance, making the material indispensable where thermal cycling and low pressure drop are critical.

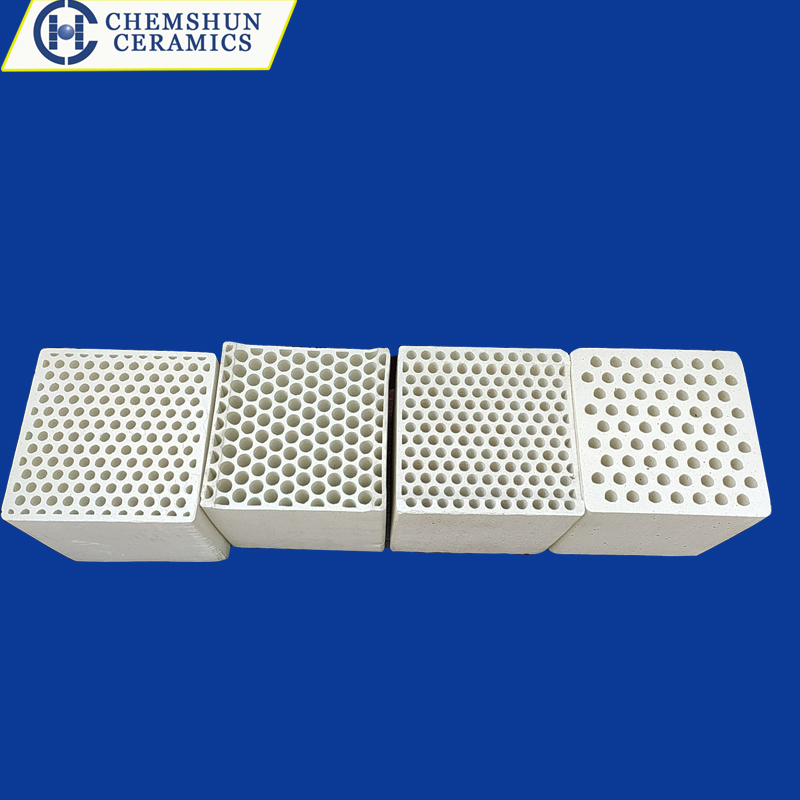

Standard honeycomb ceramic products are specified by their cell density, wall thickness, and bulk dimensions. Common cell configurations range from 100 cpsi (cells per square inch) to 600 cpsi, with nominal wall thicknesses from 0.1 mm to 0.5 mm, achieving geometric surface areas of approximately 1,800–3,500 m²/m³. Our precision-manufactured blocks are regularly supplied in dimensions such as 150×150×150 mm and 150×150×300 mm, with axial compressive strength exceeding 15 MPa (A-axis) and a maximum service temperature of up to 1,300°C for cordierite compositions. Each batch is rigorously tested to ensure bulk density remains within 0.60–0.85 g/cm³ and that the open porosity and mechanical integrity align with the demands of continuous, high-duty-cycle operation.

In industrial practice, honeycomb ceramics serve as catalytic converter substrates in automotive exhaust systems, structured packing in regenerative thermal oxidizers (RTOs) for volatile organic compound abatement, heat storage media in high-temperature furnaces, and mass-transfer supports in chemical process columns. The straight, non-tortuous channels minimize pressure drop while maximizing geometric surface area, which directly enhances reaction kinetics and heat recovery efficiency. As a trusted industrial ceramic filler manufacturer, we supply both standard geometries and fully customized honeycomb blocks—with tailored cell shapes, coatings, and ceramic formulations—to meet specific operational requirements in the environmental protection, petrochemical, and fine chemical sectors.

Combining decades of ceramic engineering expertise with ISO-certified production facilities, we deliver honeycomb ceramic products that consistently meet tight dimensional tolerances, thermal durability, and chemical inertness. Whether your application demands a catalyst carrier with ultra-thin walls for fast light-off or a large-scale RTO media block for maximum thermal efficiency, our team provides data-driven recommendations backed by comprehensive material characterization. By continuously refining our extrusion and sintering processes, we ensure that every ceramic monolith leaving our plant contributes to cleaner emissions, lower energy consumption, and longer equipment service life.
