Ceramic Raschig Ring: The Foundational Random Packing for Industrial Mass Transfer

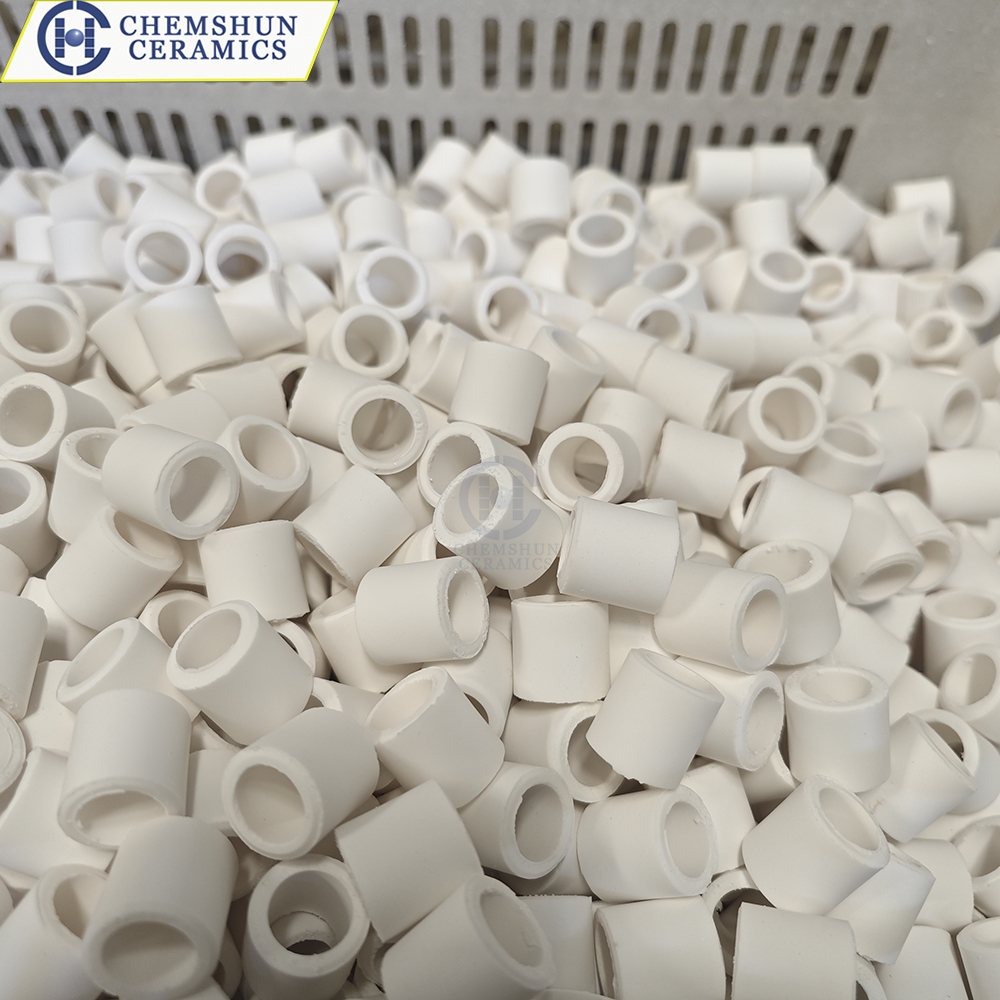

The ceramic Raschig ring holds a distinguished place in the history of chemical engineering as the earliest artificially manufactured random packing for mass transfer columns. Named after its inventor, the German chemist Friedrich Raschig, this simple yet effective cylindrical packing has been serving industries worldwide for over a century. Its design principle—a hollow cylinder with height equal to its diameter—remains a cornerstone of packed column technology.

The ceramic Raschig ring is characterized by its straightforward geometry: a hollow cylindrical ring where the height equals the outer diameter. This 1:1 aspect ratio provides a balanced relationship between surface area and mechanical strength.

Standard dimensions range from as small as 6 mm to as large as 150 mm in diameter, with wall thicknesses varying between 2.5 mm and 9.5 mm. The most commonly used sizes fall within the 25 mm to 75 mm range.

Two distinct filling methods are employed depending on ring size:

Structured/Regular filling: For rings 100 mm and larger, arranged in an orderly stacked pattern.

Random/Dumped filling: For rings generally below 75–80 mm, poured randomly into the column.

Performance Advantages

Superior Corrosion Resistance

Ceramic Raschig rings exhibit excellent resistance to virtually all inorganic acids, organic acids, and organic solvents—with the notable exception of hydrofluoric acid (HF). This broad chemical compatibility makes them suitable for highly aggressive service environments.

Exceptional Thermal Stability

With an operating temperature exceeding 1,400°C, ceramic Raschig rings maintain full structural integrity in high-temperature applications where metal and plastic packings would fail.

High Mechanical Strength

The dense ceramic microstructure, achieved through high-temperature sintering, provides excellent crush strength and resistance to attrition within deep packed beds. The ring shape offers inherently high mechanical stability compared to other geometric forms.

Enhanced Surface Area Efficiency

The surface area-to-volume ratio of ceramic Raschig rings is approximately 30% higher than that of ceramic cylinders and balls of equivalent dimensions, providing more effective contact area for mass transfer operations.

Low Pressure Drop

With void fractions reaching up to 81% in optimized sizes, ceramic Raschig rings allow high gas and liquid throughput with minimal pressure drop across the packed bed.
