CC90-1
Chemshun
6909120000
1: Descripion :

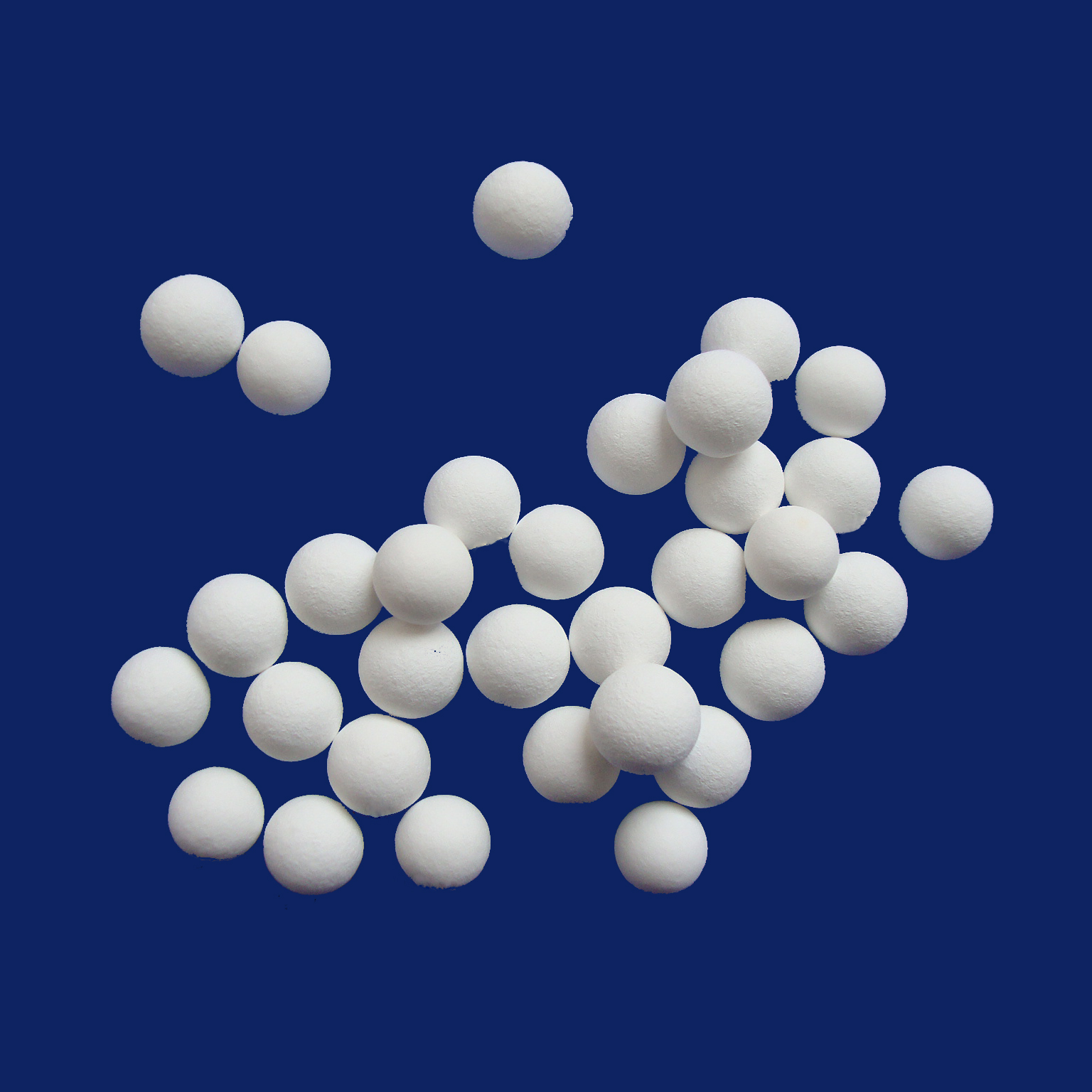

Inert Ceramic Balls are often used in catalyst bed support .widely used in petrochemical industry, chemical industry, fertilizer industry, natural gas industry and environment protection etc. With functions as covering and supporting materials for catalyst in reactors and packing for towers. The main role of inert alumina ceramic pellets is increasing the distribution of liquid and gas, holding and protecting the activated catalyst with low strength.
2. Chemical Analysis :
| Al2O3 | SiO2 | Fe2O3 | TiO2 | MgO+Cao | K2O+Na2O | Leachable Fe2O3 |
| >90% | ≦7.0% | <1.0% | <0.50% | <2.0% | <2.0% | <0.1% |
3. Physical Analysis
| Items | Proportion | Items | Proportion |
| Particle Density (g/cm3) | ≥3.1 | Package density(g/cm3) | 1.60-1.80 |
| Water Absorption (%) | ≤5 | Operating Temperature (℃) | ≤1500 |
| Moh Hardness (Scale) | 9 |
4. The Standard Specification
| Diameter | Diameter range (mm) | Crushing Strength (kg/pic) |
| 1/8 inch(3mm) | 2-4 | >40 |
| 1/4 inch(6mm) | 5-7 | >100 |
| 3/8 inch(10mm) | 9-11 | >150 |
| 1/2 inch(13mm) | 12-14 | >500 |
| 5/8 inch(15mm) | 14-17 | >700 |
| 3/4 inch(19mm) | 17-21 | >900 |
| 1 inch(25mm) | 23-27 | >1300 |
| 2 inch(50mm) | 48-52 | >2100 |
