Chemshun
84199090
Product Description:

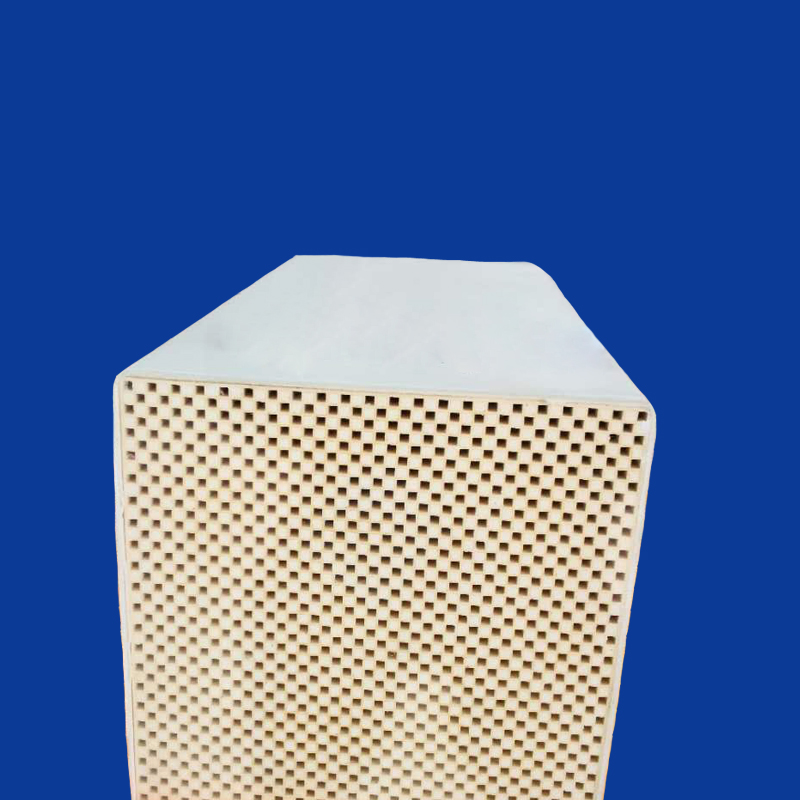

The filter element is designed with wall-flow structure. The whole filter element has a series of regular parallel channels. The inlet and outlet of all channels are staggered sealed.
Product Characters :
1.Suitable for high temperature flue gas dedusting at 400-900℃;
2.Adopt staggered stereo filtration mechanism, with ultra-high filtration area, specific surface area > 300㎡/m;
3.High loading density makes the equipment design of this product simple and small;
4.Asymmetric membrane structure, narrow aperture distribution, high filtration accuracy, not easy to produce blockage;
5.Strong thermal shock resistance, high apparent porosity and high strength;
6.Ultra-thin filter path, filter wall thickness ≤1.2mm, low pressure loss, low energy consumption;
7.Continuous filtration and regeneration can be realized .
Geometric Properties :
Size (mm) | Cells | aperture | Density (g/cm3) | Filter area | Apparent porosity | Longitudinal compressive strength | filter aperture（um) | Filter air volume | velocity of filtering | Capture rate | coefficient of thermal expansion |
150*150*500 | 32×32 | 3.85 | 0.5~0.8 | 3.90 | ≥45% | 0.8 | ≥8 | 10 | 1.2 | 0.4~1.2 | ≥99% |
200*200*500 | 42×42 | 3.85 | 0.5~0.8 | 6.80 | ≥45% | 0.8 | ≥8 | 10 | 1.2 | 0.4~1.2 | ≥99% |
Product Description:
The filter element is designed with wall-flow structure. The whole filter element has a series of regular parallel channels. The inlet and outlet of all channels are staggered sealed.
Product Characters :
1.Suitable for high temperature flue gas dedusting at 400-900℃;
2.Adopt staggered stereo filtration mechanism, with ultra-high filtration area, specific surface area > 300㎡/m;
3.High loading density makes the equipment design of this product simple and small;
4.Asymmetric membrane structure, narrow aperture distribution, high filtration accuracy, not easy to produce blockage;
5.Strong thermal shock resistance, high apparent porosity and high strength;
6.Ultra-thin filter path, filter wall thickness ≤1.2mm, low pressure loss, low energy consumption;
7.Continuous filtration and regeneration can be realized .
Geometric Properties :
Size (mm) | Cells | aperture | Density (g/cm3) | Filter area | Apparent porosity | Longitudinal compressive strength | filter aperture（um) | Filter air volume | velocity of filtering | Capture rate | coefficient of thermal expansion |
150*150*500 | 32×32 | 3.85 | 0.5~0.8 | 3.90 | ≥45% | 0.8 | ≥8 | 10 | 1.2 | 0.4~1.2 | ≥99% |
200*200*500 | 42×42 | 3.85 | 0.5~0.8 | 6.80 | ≥45% | 0.8 | ≥8 | 10 | 1.2 | 0.4~1.2 | ≥99% |
