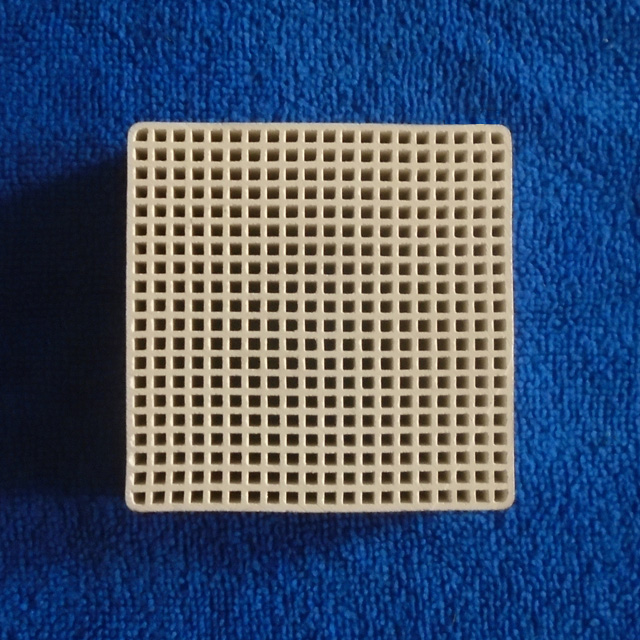

Honeycomb ceramic heat storage substrates

  • Chemshun Ceramics

>> Detailed Description :

Honeycomb ceramic are made of corundum-mullite, cordierite-mullite, cordierite, mullite, zirconia-mullite, carbo-corundum and so on with different hole shapes, such as square hole and hexagon hole, different wall thicknesses from 0.5mm to 5mm, and different figure specs, such as 100*150*100mm, 100*100*100mm, 150*150*150mm, 150*150*300mm, and so on.
Ceramic Honeycomb as the media of heat storage and heat exchange, also called honeycomb ceramic filter, it has been widely applied in the fields of metallurgy, petroleum & chemical industry, electric power, boiler and so on. It has high surface area, small resistance and thermal expansion, strong chemical corroding resistance, excellent thermal shock resistance.
>> Product characters
1) Large unit heat transfer surface
2) High heat conductivity
3) Low pressure drop
4) Low heat penetration depth and high thermal efficiency
>> Geometric properties


CommodityStandard typeQty of channelsWall thickness (mm)Weight (kg)
150*150*300  60*60  0.4 4.6
150*150*300  50*50  0.7 5.2
150*150*300  40*40  0.8 4.35
150*150*300  25*25  1.0 3.45
