Ceramic Structured Packing

Quantity:
  • Chemshun
  • 84199090

Product Description

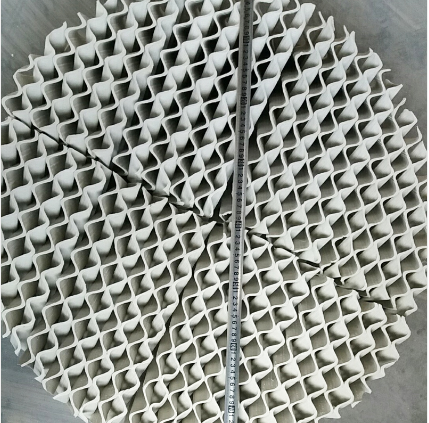

Ceramic Structured Packing is a kind of Ceramic Perforated Plate Corrugated Packing

Introduction:
Chemshun Ceramic structured packing is made up of many packing unit bodies that share the same geometry shape. Corrugated ceramic packing is called high efficiency packing, because its separation-efficiency is several times to more than ten times of random packing. Compared with random tower packing. Corrugated plate ceramic packing has great advantages such as high-efficiency, large thruput, low liquid holdup, unsharp amplification and good operability.


Advantage:
The most economical range is F-factor 1.5-2.0
Pressure drop of each theoretical sheet is 0.3-1 mbar
Minimum liquid load is 2001/m2h
A distributor should be installed for evry 3-4 meters inside packing towers with diameters of more than 300 mm

Application:
Fining process of corrosive mixtures, which have strict requirements for pressure drop and number of theoretical sheets.
Vacuum treatment under absolute pressure higher than 1 mbar.
Fining and distillation of halogen organic compounds.

Physical property
Specific gravity(g/cm3): 2.5
Water absorption(wt%): ≤ 0.5
Acid resistance(wt%): ≥ 99.5
Loss in burn(wt%): ≤ 5.0
Max. Operating Temp. (degree): 800
Crush strength(Mpa): ≥ 130
Mohs Hardness(Scale): ≥ 7



Type


Specific Surface Area
m2/m3


Corrugated
Plate thickness mm


Heaping weight
Kg/m3


Void
Volume
%


Pressure
Drop mmHg/m


Theoretical
Pieces
m-1


Liquid
Load m3/m2h


Max
Factorm/s (kg/m3)
-1


100Y


100


2.5±0.5


300


87.5


1.6


1


0.2-100


3.2


125Y


125


2.5±0.5


330


85


1.8


1-1.5


0.2-100


3.0


160Y


160


2.2±0.5


370


84


2


1.5-2


0.2-100


2.8


250Y


250


1.4±0.5


420


80


2


2.2


0.2-100


2.6


350Y


350


1.2±0.5


470


78


2.5


2.8


0.2-100


2.5


400Y


400


1.2±0.2


500


75


3


3


0.2-100


2.0


450Y


450


1.0±0.2


520


72


4


4


0.2-100


1.8


550Y


550


0.8±0.2


620


74


5.5


5-6


0.18-100


1.4


    700Y


700


0.8±0.2


650


72


6


7


0.15-100


1.3


100X


100


2.5±0.5


280


92


1.5


1


0.2-100


3.5


125X


125


2.2±0.5


300


90


1.8


1.5


0.2-100


3.2


    160X


160


1.4±0.5


350


85


2


1.8


0.2-100


3.0


    250X


250


1.2±0.5


380


80


2.5


2.3


0.2-100


2.8


   350X


350


1.2±0.5


450


78


3


2.5


0.2-100


2.6


   400X


400


1.2±0.2


480


75


4


2.8


0.2-100


2.2


   450X


450


1.0±0.2


500


72


4.5


3-4


0.2-100


2.0


   470X


470


1.0±0.2


440


75


5


5


0.2-100


1.8


   550X


550


0.8±0.2


620


74


5.5


5-6


0.18-100


1.4


   700X


700


0.8±0.2


650


72


6


7


0.15-100


1.3


Packaging & Shipping

Paper carton and pallet, Or wooden case.

Delivery: 15-30 days working day for large quantity.
Sample: Usually by EMS, DHL, UPS, TNT, FedEx. Anyway you like.


Chemshun structured packing package way
