Ceramic Raschig Rings: Performance Analysis and Application Scenarios

I. What Are Ceramic Raschig Rings?

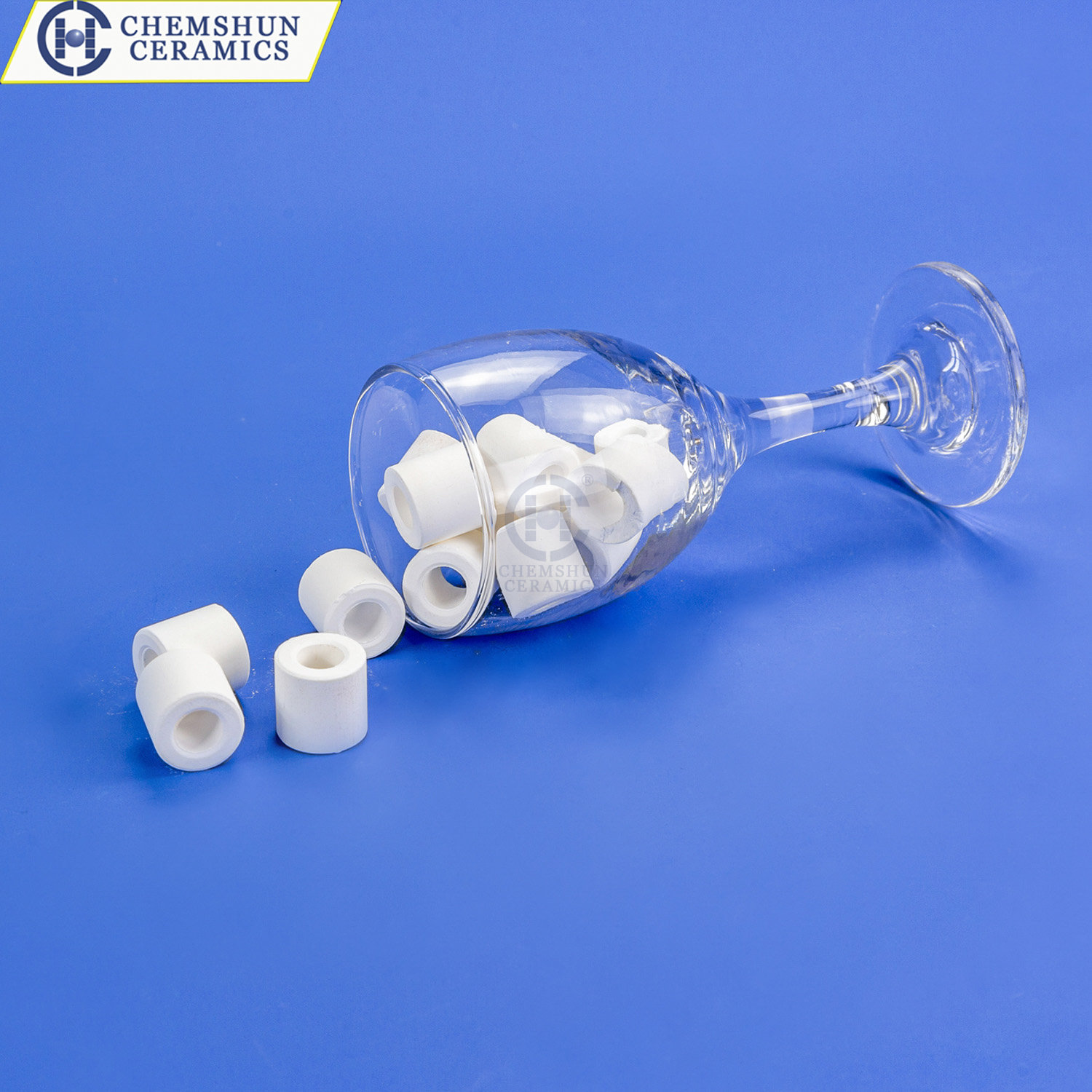

Ceramic Raschig Rings are a classic type of random packing invented by German chemist Friedrich Raschig in 1914. Their basic structure consists of hollow cylinders with equal outer diameter and height, typically made of high-alumina ceramics, corundum ceramics, or acid-resistant ceramics. These rings feature uniform wall thickness and a smooth surface or perforated design.

The dimensions of ceramic Raschig Rings vary widely, with common outer diameters ranging from 25mm to 150mm. Adjustments to wall thickness and aperture allow adaptation to different operational requirements. Their core advantages lie in the properties of ceramic materials, including high-temperature resistance (up to 1000°C or higher), resistance to acid/alkali corrosion, and high mechanical strength. For example, ceramic Raschig Rings are widely used in sulfuric acid production due to their stability in concentrated sulfuric acid environments.

II. Pros and Cons of Ceramic Raschig Rings as Tower Packing

Advantages:

- Strong Corrosion Resistance: Ceramic materials exhibit excellent tolerance to acids, alkalis, and organic solvents, making them suitable for highly corrosive media (e.g., hydrochloric acid, chlorine gas treatment).

- High-Temperature Stability: Ceramic packing resists deformation or failure in high-temperature gas separation or waste gas incineration processes.

- Low Cost: Compared to metal or plastic packing, ceramic Raschig Rings have lower raw material costs and a longer service life.

- High Specific Surface Area: Perforated designs increase gas-liquid contact area, enhancing mass transfer efficiency (specific surface area can reach 100–200 m²/m³).

Disadvantages:

- Fragility: Susceptible to breakage under mechanical impact or thermal stress; avoid rapid temperature changes or high-pressure drop conditions.

- High Weight: High bulk density (approximately 700–1000 kg/m³) necessitates reinforced tower support structures.

- Uneven Liquid Distribution: Smooth surfaces may cause liquid channeling, requiring distributors to optimize flow.

- Comparison with Other Packing Materials: Metal packing offers high strength but is costly, while plastic packing is lightweight but unsuitable for high temperatures. Ceramic Raschig Rings remain irreplaceable in high-temperature, corrosive environments.

III. Application Fields of Ceramic Raschig Rings

1. Chemical Production

- Acid Mist Absorption Towers: Used for gas drying and purification in sulfuric/nitric acid production, where ceramic materials withstand concentrated acid corrosion.

- Distillation Columns: Maintain stable performance under high temperatures in organic compound separation (e.g., aniline, pesticides).

2. Environmental Engineering

- Waste Gas Treatment: Neutralize and absorb acidic gases (e.g., HCl, SO₂) in incineration flue gas via ceramic-packed towers, achieving over 90% efficiency.

- Wastewater Treatment: Serve as biofilter media in high-concentration organic wastewater treatment, leveraging their porous structure for microbial attachment.

3. Metallurgy and Energy

- Gas Purification: Remove H₂S and tar impurities in coke oven gas desulfurization towers.

- Nuclear Industry: Used in radioactive waste liquid evaporation-concentration systems, outperforming most materials in radiation resistance.

- Innovative Applications: Improved variants like ceramic saddle rings (e.g., ceramic Intalox Saddles) with asymmetric structures reduce pressure drop and are gradually replacing traditional Raschig Rings in flue gas desulfurization towers.

Ceramic Raschig Rings continue to play a vital role in chemical, environmental, and industrial fields due to their unique corrosion and high-temperature resistance. Despite limitations such as fragility and weight, structural optimizations (e.g., perforations, internal rib design) and scenario-specific adaptations ensure their status as a preferred packing in highly corrosive environments. Future advancements in ceramic materials may expand their applications into emerging fields like renewable energy and carbon capture.
