Top Five Most Common Ceramic Packings and Their Applications

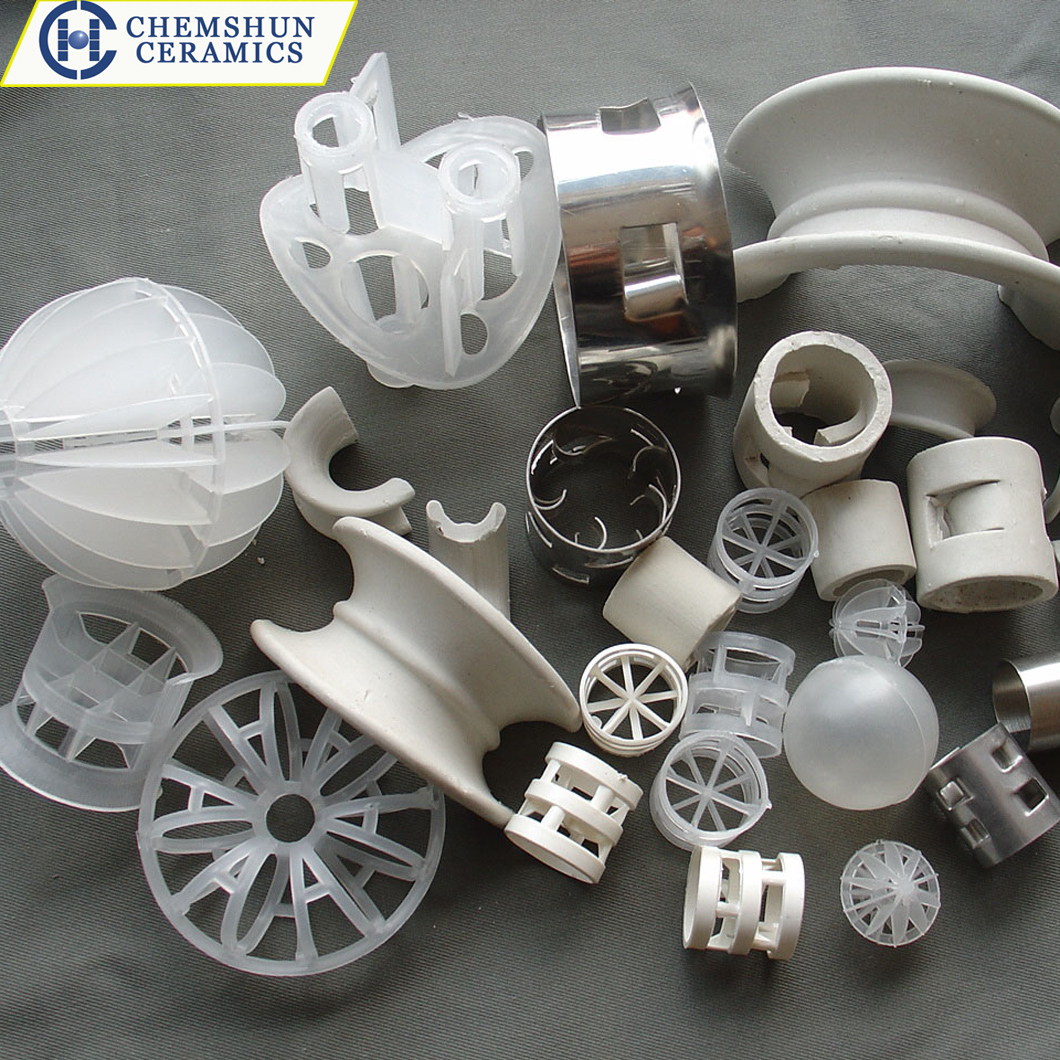

Ceramic packings are widely used in tower equipment (e.g., drying towers, absorption towers, cooling towers) across chemical, metallurgical, gas, and oxygen production industries due to their high-temperature resistance, corrosion resistance, and mechanical strength. Below is a detailed analysis of five common ceramic packings:

1. Ceramic Raschig Ring Packing

Advantages: Simple structure, easy installation, low pressure drop, suitable for corrosive media and high-temperature environments; exhibits high chemical stability, resistant to strong acids (except hydrofluoric acid) and organic solvents.

Disadvantages: Low mass transfer efficiency, uneven liquid distribution, prone to wall flow, reducing packing layer utilization.

Cost: Low cost, categorized as an economical traditional packing.

Applications: Corrosion-resistant applications with low mass transfer efficiency requirements, such as drying towers in acid production and gas desulfurization towers.

2. Ceramic Structured Corrugated Packing

Advantages: High mass transfer efficiency, moderate pressure drop, high theoretical plate count, and wide operational flexibility; suitable for vacuum to high-pressure systems, especially ideal for distillation processes.

Disadvantages: Complex structure, high manufacturing/installation costs, and strict compatibility requirements with equipment.

Cost: High-end packing with significantly higher costs than random packings.

Applications: Distillation towers requiring precise separation (e.g., aromatic hydrocarbon separation in petrochemicals) and pressurized absorption towers.

3. Ceramic Saddle Ring Packing

Advantages: Saddle-shaped structure enhances gas-liquid contact area, combining high mass transfer efficiency with anti-clogging capabilities; excellent high-temperature resistance, suitable for high gas velocity environments.

Disadvantages: Slightly lower mechanical strength; long-term use may lead to breakage under media impact.

Cost: Moderately high due to structural complexity and processing difficulty.

Applications: Gas purification towers and high-temperature exhaust treatment systems (e.g., steel plant desulfurization towers).

4. Ceramic Porous Packing

Advantages: High porosity and large specific surface area, ideal for microbial adhesion and catalytic reactions; combines corrosion and wear resistance, suitable for biofilm-based treatment processes.

Disadvantages: Susceptible to particulate clogging, requiring regular cleaning and maintenance, which increases long-term operational costs.

Cost: Moderate, due to specialized sintering processes for porous structures.

Applications: Biological filters in wastewater treatment and catalytic reactors (e.g., VOCs purification towers).

5. Ceramic Spherical Packing

Advantages: Spherical structure ensures excellent fluidity, uniform filling, and high pressure resistance; suitable for high-flow and high-impact environments with minimal breakage risk.

Disadvantages: Smaller specific surface area and lower mass transfer efficiency compared to saddle or corrugated packings.

Cost: Low, owing to mature production techniques and standardized manufacturing.

Applications: Cooling towers in oxygen production systems and gas scrubbing towers in metallurgy requiring uniform media distribution.

Conclusion

Selection of ceramic packings should balance process conditions (temperature, pressure, media corrosivity), equipment design, and budget. Key recommendations include:

High-precision separation: Prioritize ceramic corrugated packings.

Highly corrosive media: Opt for Raschig rings or saddle rings.

Biological/catalytic processes: Use porous packings.

The versatility of ceramic packings ensures their irreplaceability in chemical and environmental engineering. With advancements in material technology, their applications are expected to expand further.
