Characteristics, types and applications of plastic tower packing

Plastic fillers are a type of functional materials widely used in industrial production and materials science fields. Their core role is to optimize fluid distribution, enhance mass transfer efficiency or improve material performance, thereby increasing equipment efficiency or the overall performance of products. The following is a systematic introduction to plastic fillers from three aspects: characteristics, types and applications.

I. Characteristics of Plastic Tower Packing

Corrosion resistance: Plastic tower packing is typically made of materials such as polypropylene (PP), polyethylene (PE), and polyvinyl chloride (PVC), and it has excellent corrosion resistance to inorganic acids, alkalis, and organic solvents, making it suitable for corrosive environments such as chemical engineering and environmental protection.

Lightweight and impact-resistant: Compared with metal packing, plastic tower packing is lighter in weight, more resilient, less prone to breakage, and can be made into thin-walled structures to reduce equipment load.

Temperature adaptability: The long-term operating temperature range of plastic tower packing is 60-280℃, and it can withstand higher temperatures in the short term. However, when exposed to continuous high temperatures, the material should be carefully selected (for example, PVDF has stronger temperature resistance).

High mass transfer efficiency: Plastic tower packing features a large void ratio, low pressure drop and high flooding point, which can fully promote gas-liquid contact and is suitable for processes such as absorption, desorption and dust removal.

Surface wettability: The surface wettability of some plastic tower packing is relatively poor, but it can be improved through chemical treatment (such as hydrophilic coating) to enhance the liquid film coverage effect.

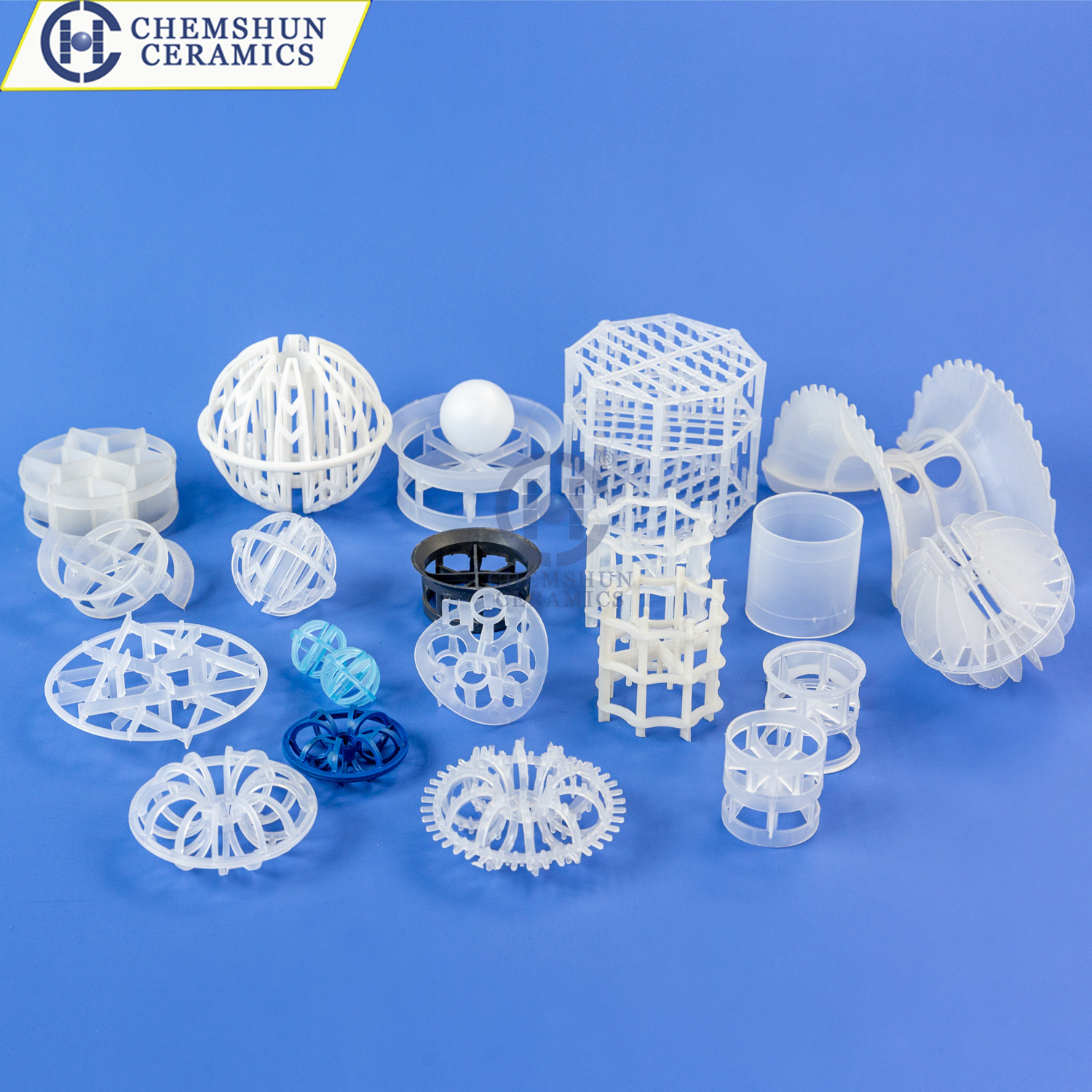

Ii. Types of Plastic Tower Packing

1. Pall rings, Cascade mini rings, Raschig rings, etc., enhance the efficiency of gas-liquid distribution through hole design. For example, the step ring reduces pressure drop and increases flux through conical flanging.

2. Saddle rings and super saddle rings, with their asymmetric structures, can reduce the liquid flow deviation phenomenon within the packing layer.

3. Hollow floatation ball and liquid surface covering spheres are suitable for gas dispersion and liquid distribution control.

4. Corrugated plate packing and wire mesh packing, through orderly arrangement, achieve more uniform fluid distribution and are suitable for high-precision separation processes (such as vacuum distillation).

Iii. Application Fields of Plastic Tower Packing

Chemical and petrochemical industry: It is used in absorption towers, distillation columns and reaction towers to handle processes such as oil and gas separation and catalyst carriers, and to enhance mass transfer efficiency.

Environmental protection and water treatment: It serves as a microbial carrier in biological reaction tanks (such as aeration tank fillers) to promote the degradation of organic matter. Adsorb acid mists, VOCs and other pollutants in the waste gas treatment tower.

Food and pharmaceuticals: It is used in equipment such as fermentation tanks and purification towers, and must meet food-grade standards (such as PP material) to ensure no pollution.

New energy and materials: Used as electrode or diaphragm materials in fuel cells and electrolytic water hydrogen production to optimize reaction conditions.

Other fields: It is applied in industries such as metallurgy (hydrometallurgical filtration), textile (printing and dyeing wastewater treatment), and papermaking (pulp rinsing).

Iv. Future Development Trends

With the growth in demand for green manufacturing, the research and development of bio-based fillers (such as bamboo fiber and starch) and degradable fillers has become a hot topic to balance performance and environmental protection requirements. In addition, the application of intelligent fillers (such as materials that respond to temperature and humidity changes) in precision chemicals is also under exploration.
